At Malta Dynamics, we know that work at heights is just part of the world of hazards that exist for fall protection, sometimes the fall hazard happens in a confined space or below the ground level. This fall hazard scenario is an important factor to consider when preparing for fall protection precautions. The use of tripods and winches allows for a worker to be raised or lowered to safety within a confined space or below the surface of the ground.
Tripods accommodate a variety of fall arrest devices and winches. When you rent a tripod from Malta Dynamics, we offer two options for standard use with our rental tripod units.

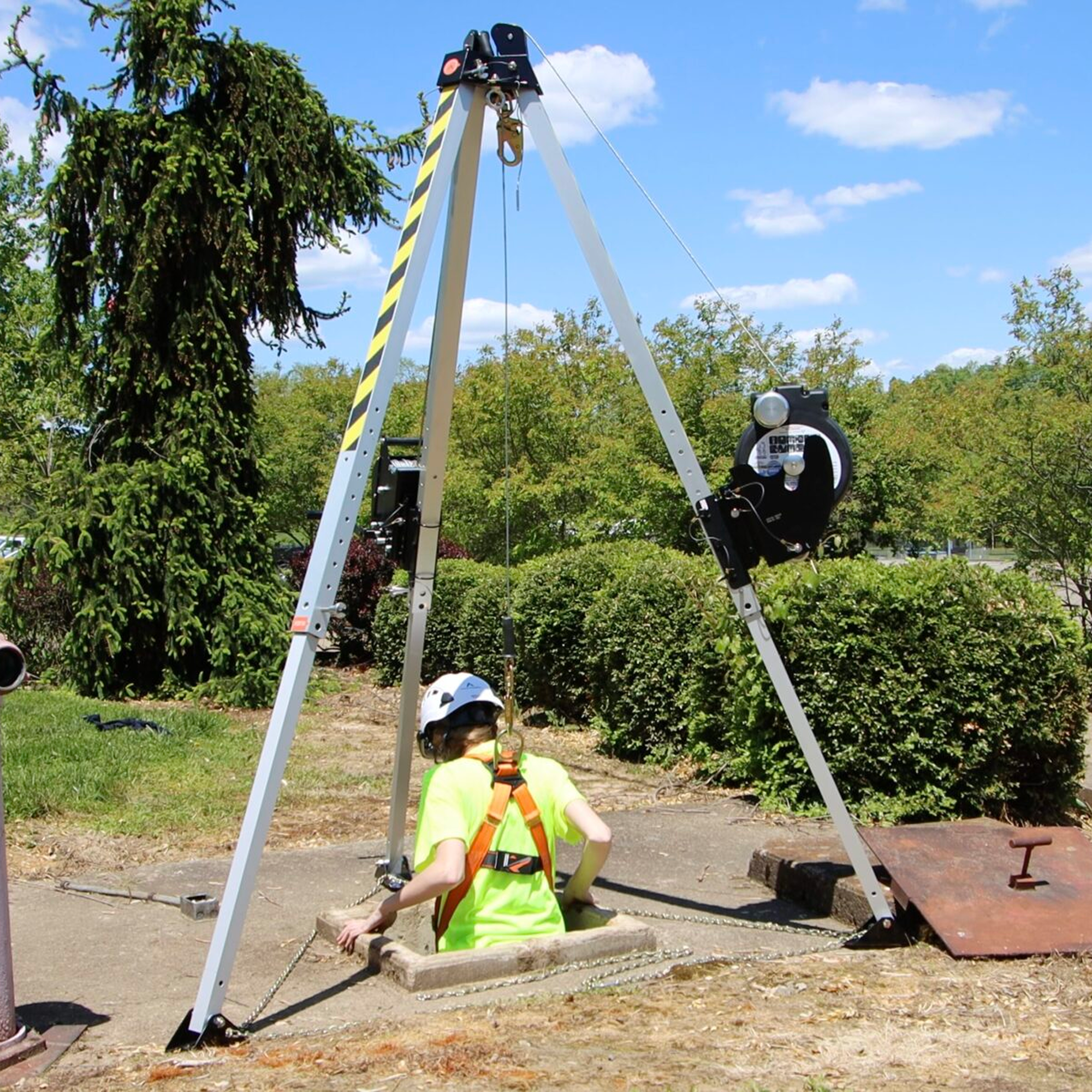

Confined Space Rescue Tripod.
The 7' Confined Space Rescue Tripod serves as the overhead anchor point for every confined space operation. Aluminum telescoping legs allow fast setup over any opening big enough for a person, supporting one worker up to 310 lbs. Certified to ANSI Z359.18, it anchors your entire confined space system in place, providing a secure access point and enhancing safety.
Tripod Rental Pricing.
| DAILY | WEEKLY | MONTHLY |
|---|---|---|
|
$60
|
$120
|
$240
|

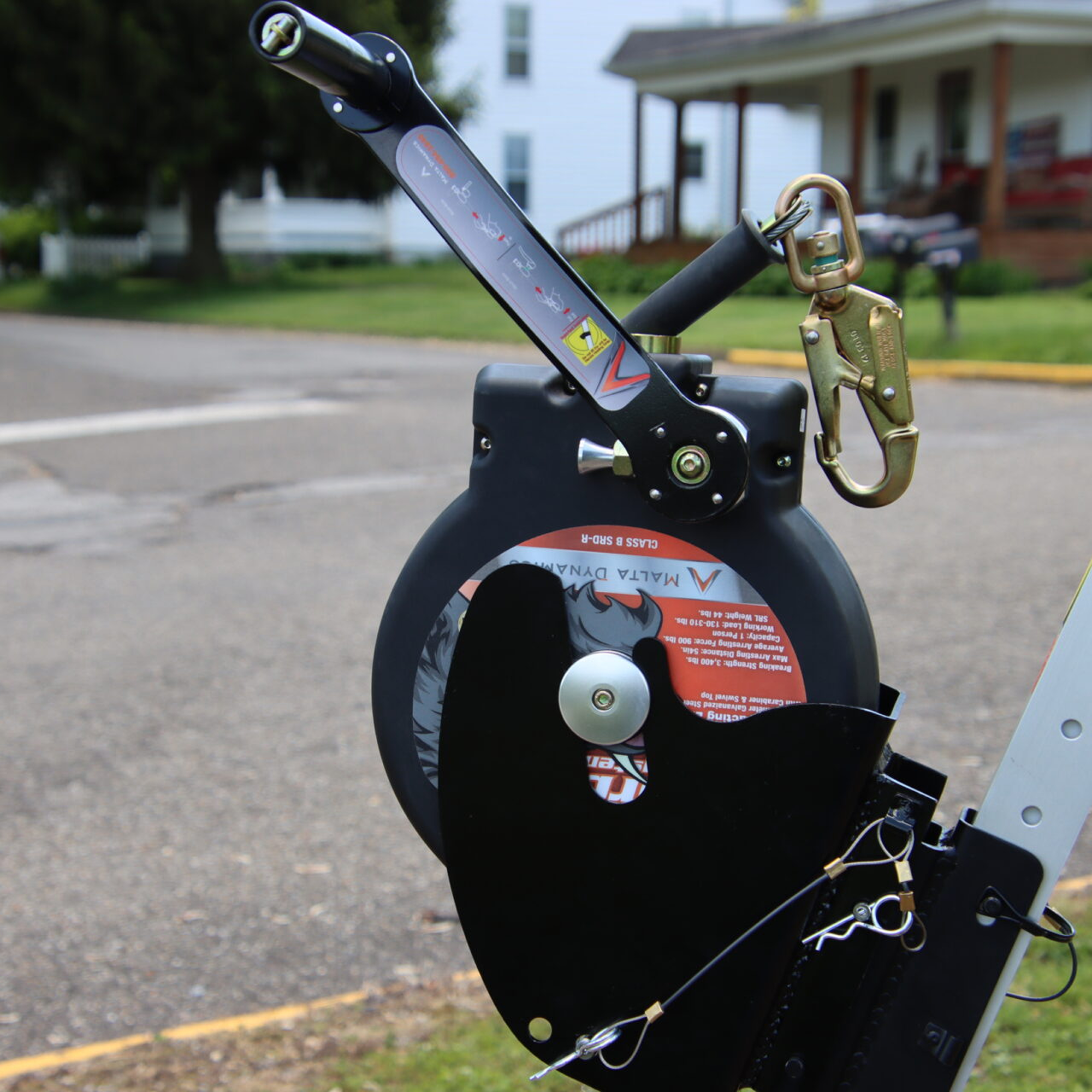

3-Way Recovery SRL.
The 100' Razorback 3-Way Recovery Self-Retracting Lifeline combines fall arrest, retrieval, and winch modes in a single unit allowing your attendant every tool needed to respond without entering the space. Certified to ANSI Z359.14, Class SRL-R, it offers a reliable exit strategy and mechanical advantage for rescue operations.
3-WAY RESCUE SRL Pricing.
| DAILY | WEEKLY | MONTHLY |
|---|---|---|
|
$40
|
$180
|
$400
|

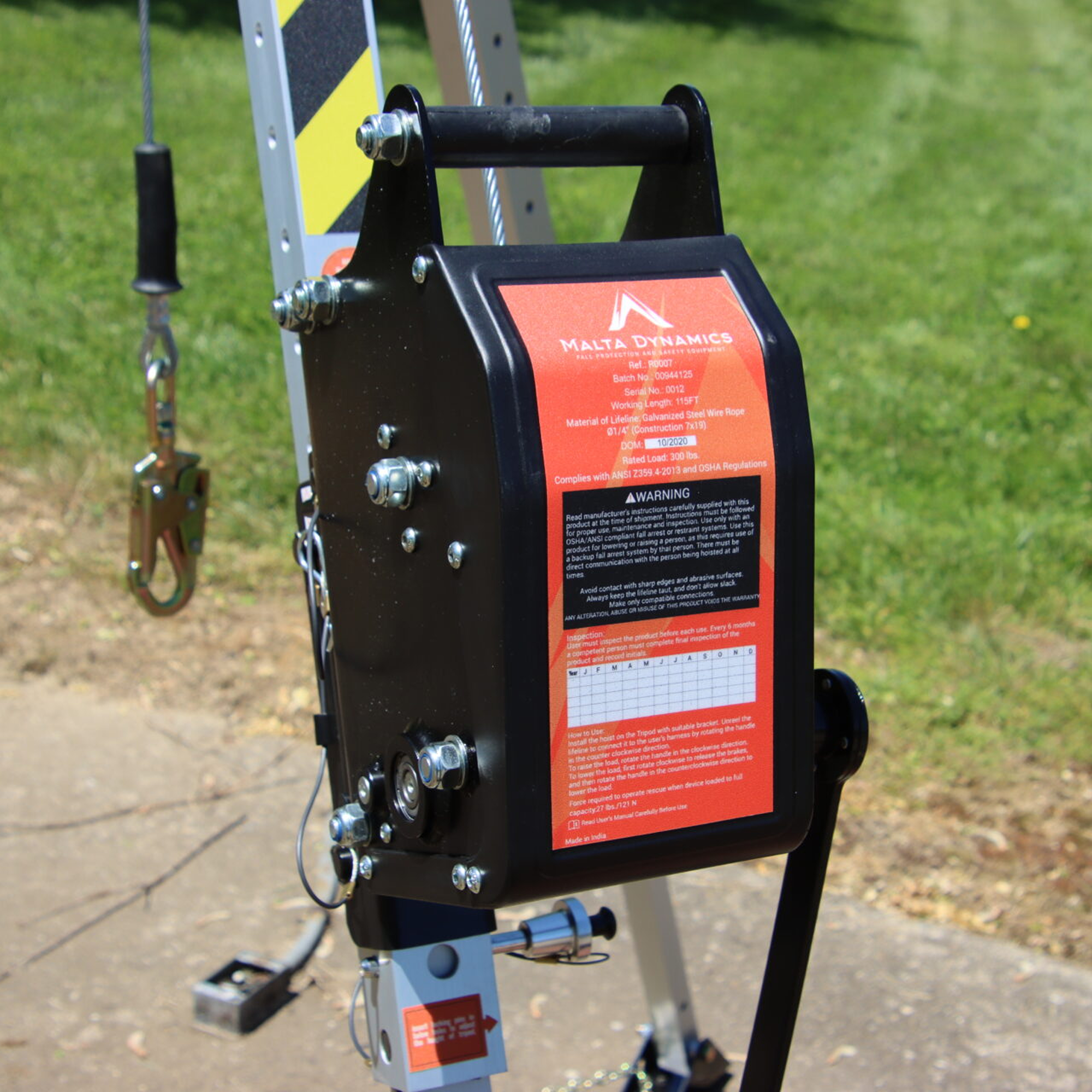

MATERIAL/MANHANDLING WINCH.
The Personnel Winch gives attendants smooth mechanical control to raise or lower a worker or materials safely during confined space rescue or routine operations. Mounts directly to the Malta Dynamics tripod via the SRL Bracket, providing essential rescue equipment for worker safety.
MATERIAL / MANHANDLING WINCH Pricing.
| DAILY | WEEKLY | MONTHLY |
|---|---|---|
|
$40
|
$180
|
$400
|
3-Way Recovery Self-Retracting Lifeline Bracket.
The SRL Bracket mounts directly to the tripod head with a connected locking pin, securing the Razorback SRL and Personnel Winch for a stable, compliant retrieval system. Durable unibody construction holds everything in place, protecting the entire setup and enhancing security.
MATERIAL / MANHANDLING WINCH Pricing.
| DAILY | WEEKLY | MONTHLY |
|---|---|---|
|
$40
|
$180
|
$400
|
Frequently Asked Questions
What OSHA standard governs confined space entry?
What OSHA standard governs confined space entry?
OSHA 29 CFR 1910.146 covers permit-required confined spaces in general industry. It defines entry requirements, attendant duties, retrieval system specifications, and rescue procedures to protect workers from hazards.
What confined space equipment is required for permit-required spaces?
What confined space equipment is required for permit-required spaces?
OSHA requires authorized entrants to wear a full-body harness with a retrieval line attached at the dorsal steel D-ring. For spaces deeper than 5 feet, a mechanical lifting device is mandatory to ensure safe exit.
What is non-entry rescue and what equipment does it require?
What is non-entry rescue and what equipment does it require?
Non-entry rescue means retrieving a worker from outside the space without a rescuer entering. It requires a retrieval line, full-body harness, and a mechanical device. This is exactly what the Razorback SRL and Personnel Winch are built for.
Can this equipment be rented instead of purchased?
Can this equipment be rented instead of purchased?
Yes. Malta Dynamics offers the tripod, winch, and 3-Way Rescue SRL through its confined space rental program which is ideal for contractors who need compliant equipment for a single project or short-term worksite needs.
Is Malta Dynamics confined space equipment ANSI certified?
Is Malta Dynamics confined space equipment ANSI certified?
Yes. The tripod is certified to ANSI Z359.18 and the Razorback SRL to ANSI Z359.14 Class SRL-R. Each product is certified to the standard specific to its function, ensuring maximum safety and compliance.
How do I know which confined space equipment I need?
How do I know which confined space equipment I need?
Start with whether the space is permit-required and its depth. From there, Malta's team can help you build the right kit. Contact us or visit our Training & Inspections page for guidance and to find the best selection of accessories.
